EP kuuma õhu generaator 50 kW

2400 m3 / h

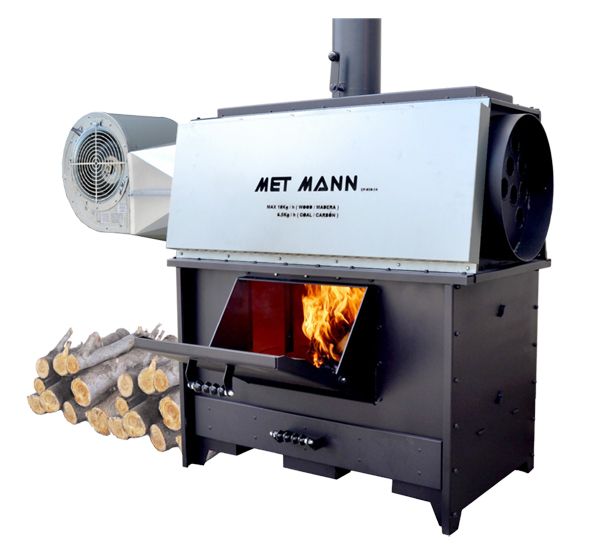

Industrial wood stove with centrifugal fan of 50 kw of heat power




Its use is suitable for all types of non-domestic premises where the fuel to be used is firewood, remains of wooden pallets, shells, etc ...


Main features:



- Performance over 80%.
- Made of thick steel.
- Large capacity combustion hearth.
- Interior of the home in refractory bricks to avoid overheating in the areas most exposed to heat.
- Grill of the hearth of combustion in steel resistant to high temperatures.
- Shot regulator applied to the smoke outlet.
- Wide ash collection drawer.
- Reversible air fan on the right or left.
- Electrical voltage at 230V / I / 50Hz.
- Its constructive shape greatly facilitates its maintenance and cleaning.
- Equipment with CE certificate.


Technical data:



- Nominal thermal power: 50 kW
- Yield: 80%
- Centrifugal air fan.
- Air flow: 2,400 m3 / h
- Available pressure: 60 Pa
- Electric power: 0.19 kW
- Electrical voltage: 230V / I / 50Hz
- Air drive diameter: 410mm
- Load mouth: 510x280mm
- Chimney diameter: 150mm
- Overall dimensions (Width / Depth / Height): 785x1860x1190mm
- Weight: 370 kg
